Description

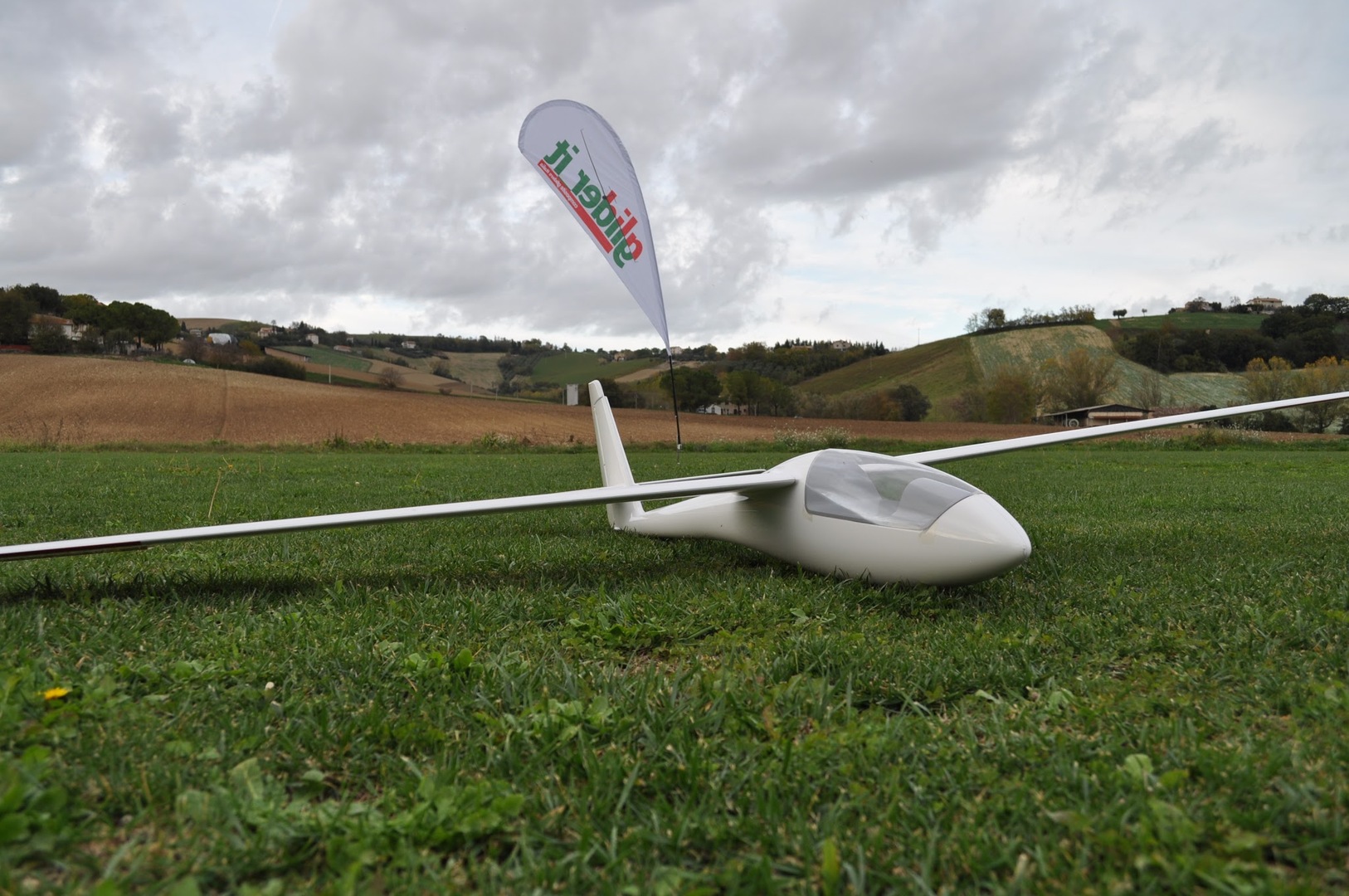

Glider_it ASW-15 is a modern high performance and versatile semi-scale glider.Thanks to its airfoil developed directly by us starting from a Norbert Habe (thickness from 11.2% to 10.6%, camber from 2.0° to 1.2°), it is perfectly suited for this use and allows a wide speed range.
Circling with the ASW-15 in a weak thermal lift is easy and due to its low drag and excellent conversion between altitude and speed it is perfectly suitable for aerobatics and high speed flight.
Flaps and ailerons are hinged at the lower side ensuring comfortable landings using butterfly configuration.
Technical Data
| Unit of Measure | Value | |
|---|---|---|
| Wing span: | mm | 3.750 |
| Wing area: | dm2 | 70 |
| Fuselage length: | mm | 1.780 |
| Weight (OD, glider config.): | ∼kg | 5,5 |
| Weight (OD, extralight version, glider config.): | ∼kg | 5,0 |
| Wing load (OD, extralight version, glider config.): | g/dm2 | 55 |
| Wing airfoil: | n/a | Mod. HN |
Technical Setup
| Suggested servos setup | Brand | Type | Max Thickness |
|---|---|---|---|
| elevator: | KST | BLS651 | 20 mm |
| rudder: | KST | BLS651 | 20 mm |
| ailerons: | KST | X10 | 10 mm |
| flaps: | KST | X10 | 10 mm |
| Suggested engine setup | ||
|---|---|---|
| Battery cell: | Lipo | 5s |
| Battery capacity: | mAh | 5.000 |
| Controller: | Castle Edge lite, Ah | 100 |
| Engine: | Leomotion | L4031-2550 finned 6,7:1 |
| FES*: | – | – |
| Propeller: | Leomotion | Carbon propeller 18×13 |
